- The system with transparency

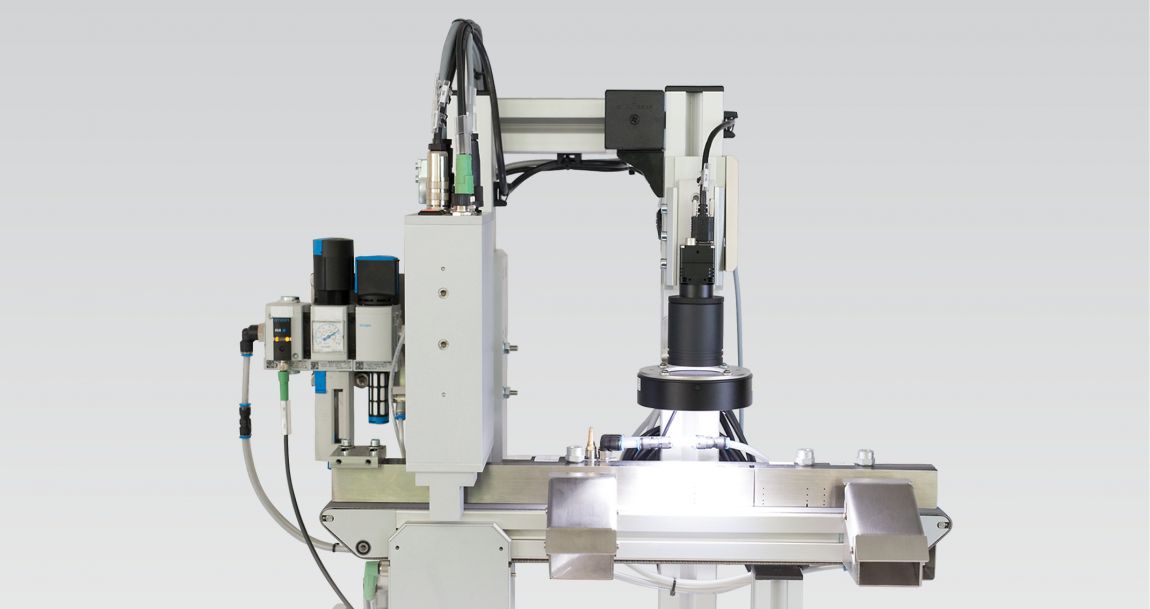

IFC Camera-Conveyor-Belt-Unit
The opto-electronic feed unit for flexible feeding, inspection and sorting of small parts.
This IFC system, consisting of camera system(s) and individual module conveyor belt line can be integrated as a partial solution into existing or new production lines.
Properties
- Contour comparison and inspecting of several types part on only one device
- Orientation detection of rotation symmetrical components or individual goods, with at least one stable part position, including quality inspection
- Feeding parts up to a width of 80 mm with a production rate of up to 50 parts/sec
- With direct integration of a checkbox in a centrifugal feeder, up to 120 m/min can be achieved
- Control of bowl feeder head and following storage line done by checkbox
- Teach-in process for new part types
User benefits
- Detect and inspect the most complicated part geometries and feedpositions with the system
- Contour comparison of difficult inspection parts and inspecting several part types with only one conveying device
- Patented IFC modular design for customer-specific flexibility, excellent price-performance ratio and short delivery time
- Simple to integrate into existing or new production lines
- Contactless, extremely fast position detection and quality control at production rate
- Zero defect philosophy and reduction of downtimes and costs
- Type change at the touch of a button
- Fully-automated machine monitoring and control of the entire feeding system
