- Powerful from A to Z

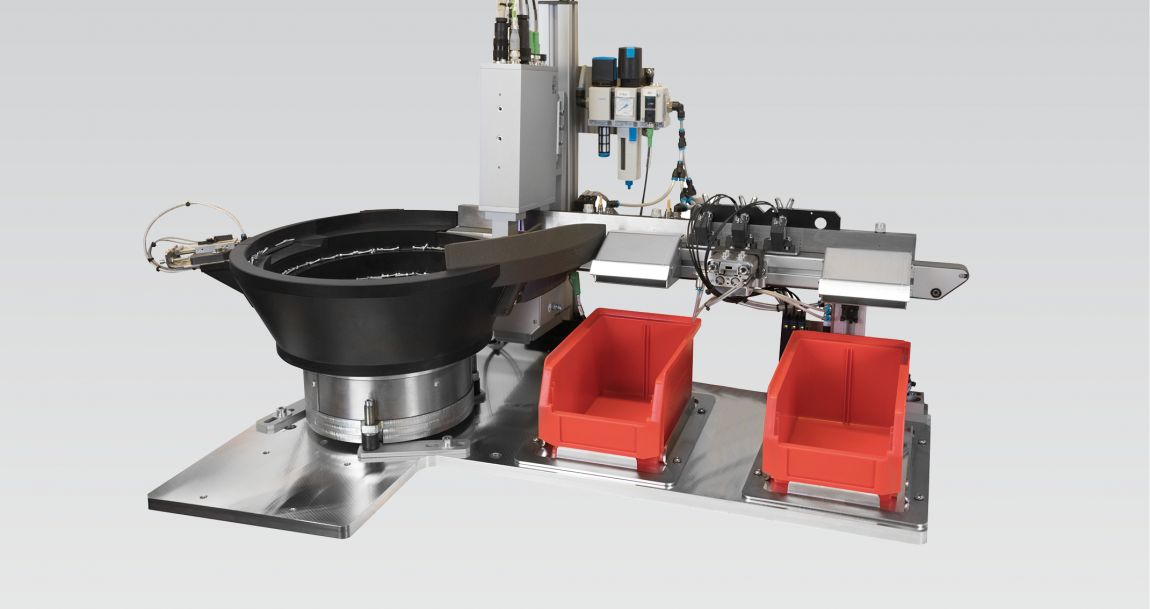

IFC Complete-System
The opto-electronic IFC complete system is designed as a turnkey plug & play unit according to customer-specific terms of reference. The system can be easily, quickly and safely integrated into the production process. It consists of the following, individual components precisely attuned to each other.

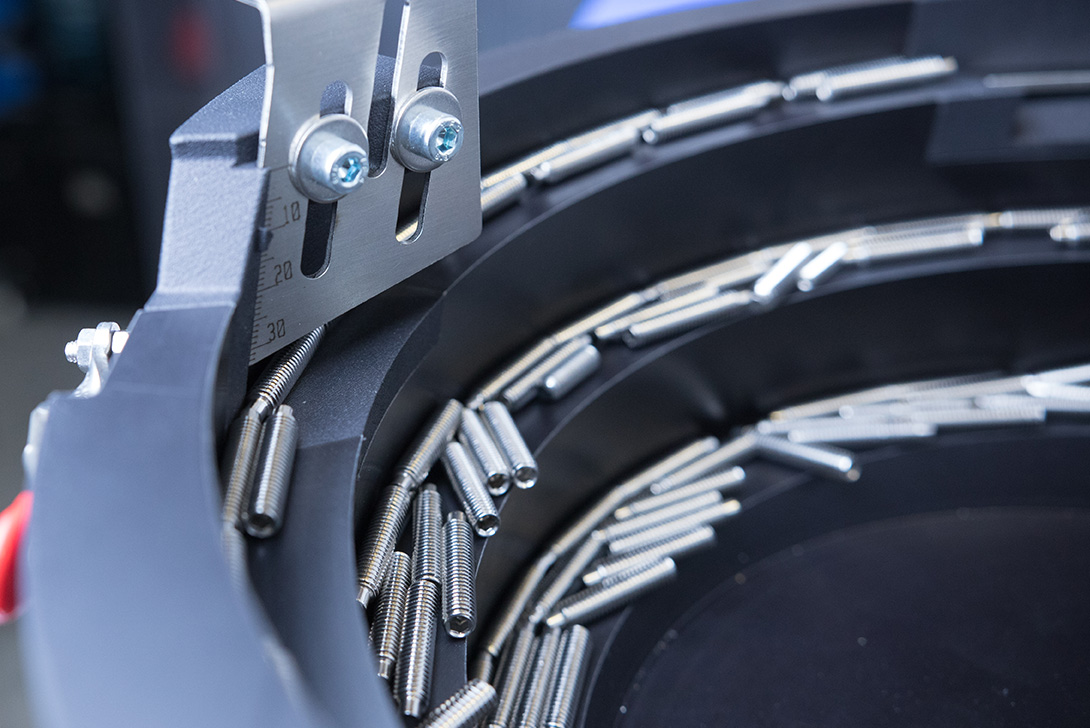

Standardised bowl feeder
- With adjustable height and width slide
- Outer diameter 300 mm
- PA design
- With rapid emptying
- With vibration sensor

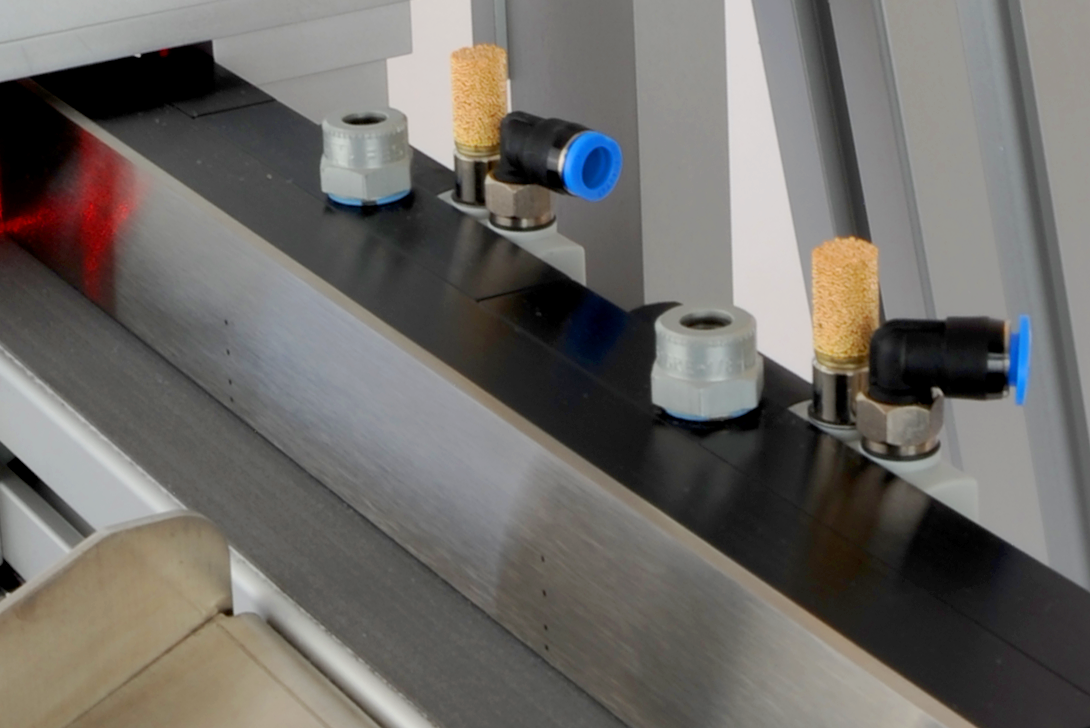

Modular conveyor belt
- Belt width 40 or 80 mm
- Length can be defined in 100 mm steps
- Various IFC function modules
- Speed up to 72 m/min, steplessly adjustable via internal potentiometer
- 3-phase electronically-commutated external rotor DC motor with integrated electronics

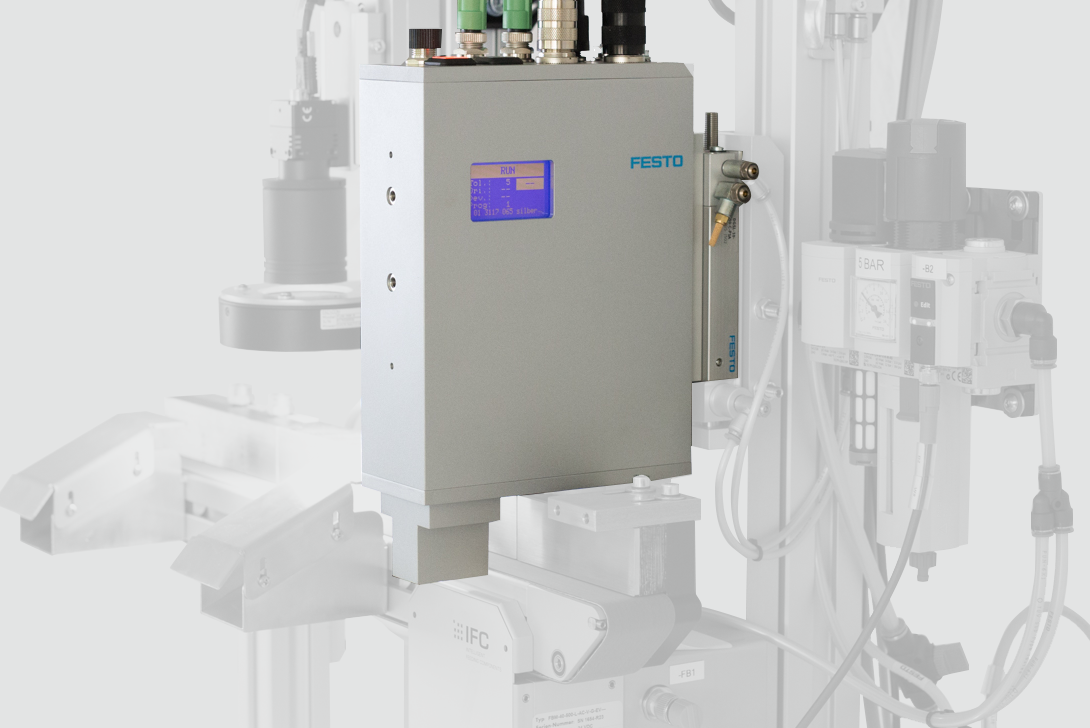

Camera
- Teachable at the touch of a button
- Number of type memorie: 256
- Count function
- Inputs and outputs for external control system
- Software configurable
- Fast Ethernet connection
- Second camera for additional inspection possible f ejecting not OK parts
- Including encoder evaluation

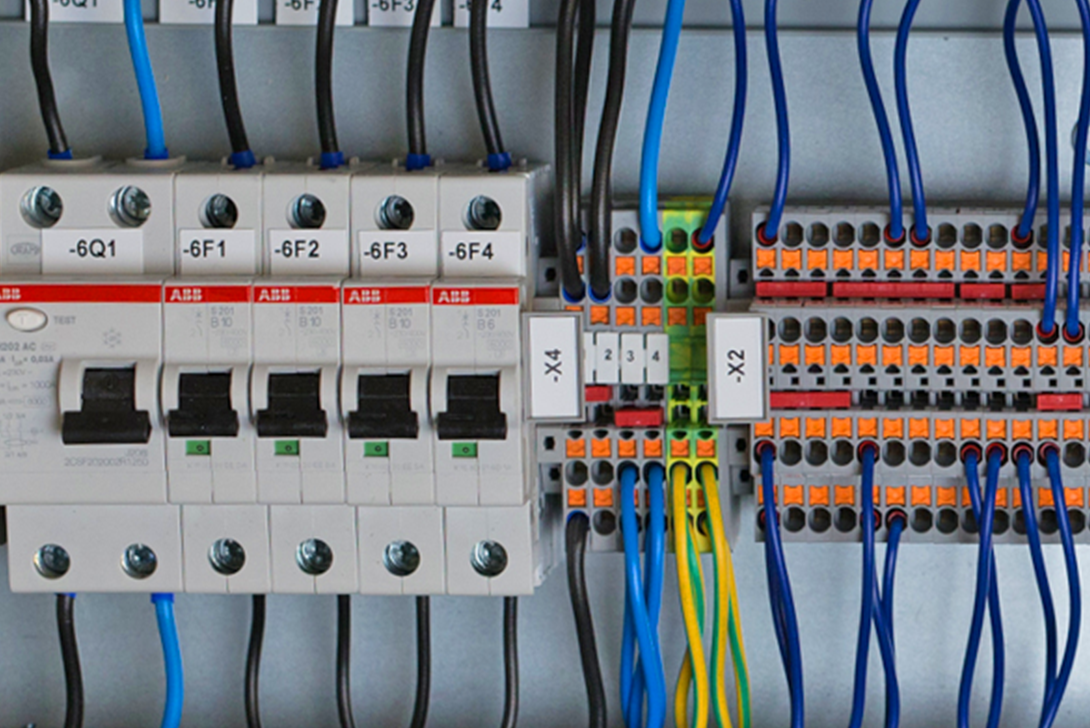

Completely wired switching cabinet
In various designs:- Ready to connect with 230V Schuko plug
- Main switch and fuses
- 24V power supply
- Terminal clamps for external control and peripherals
- With integrated compressed air monitoring
- Controller and socket for bowl feeder drive
