- Replacement for FESTO-Checkbox family

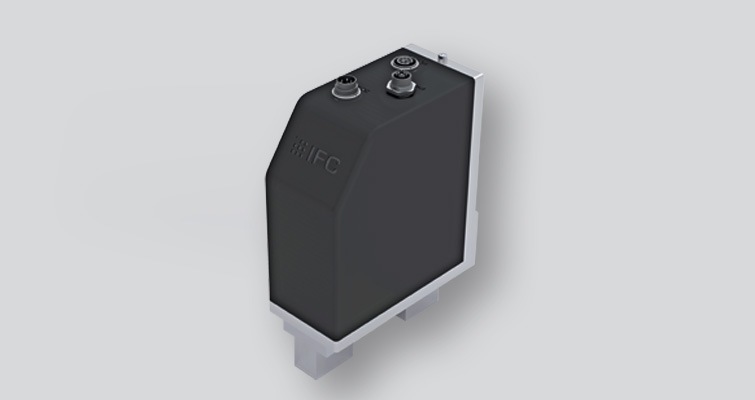

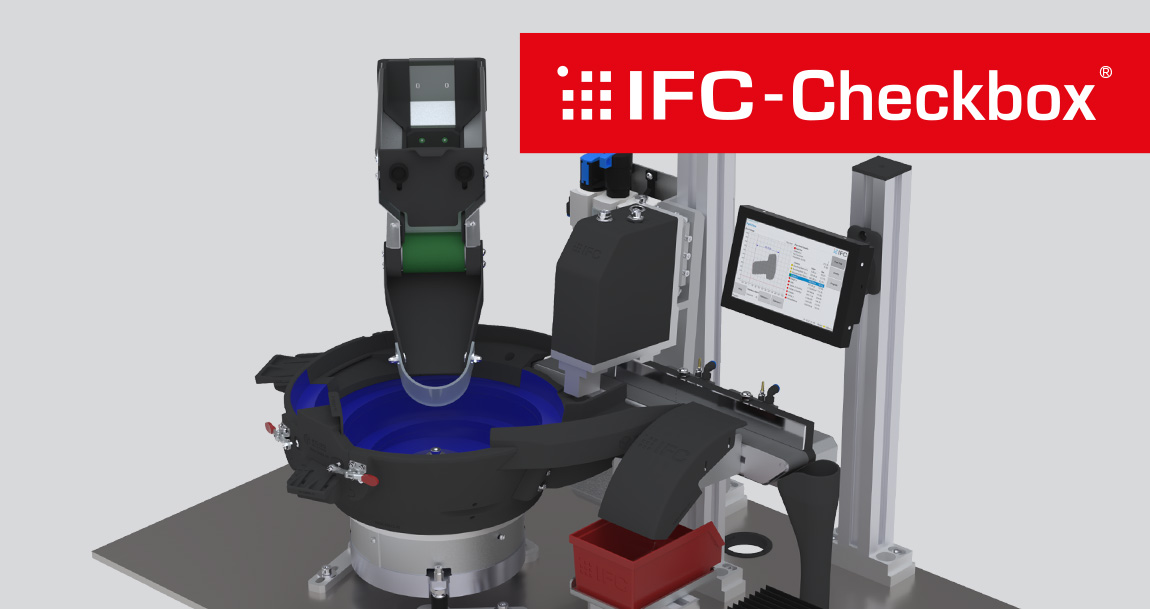

IFC-Checkbox
- Downwards-compatible with the Checkbox-
Compact N (with Ethernet interface) - Teach-in function as before
- No special electronics, usage of standard Components
- open to customised request, requirements and expansions in the future
Dimensions and installation
- Fastening 1:1 with the dovetail adapter (like the Checkbox Compact)
- Possibly smaller construction height
Test programs and teach-in
- Scope and functions as before
- This means the existing test programs for the Checkbox-Compact N can be used 1:1
Electronics
- No special electronics, usage of standard components
- Standard line scan camera (same sensor size and same resolution as before)
- Standard IPC
- Standard HDMI display
